Smart Occupancy Based Energy Optimization System

An ESP32-based smart classroom energy management system that automatically controls lighting power modes using:

Occupancy counting from dual IR sensors (entry/exit sequence detection)
PIR motion sensing for presence-aware behavior at zero occupancy
A web dashboard for live monitoring, control, overrides, logs, anomaly alerts, and mode-threshold configuration

This project is a functional proof-of-concept prototype demonstrating occupancy-based energy optimization. A production deployment would incorporate industrial-grade sensors rated for real-world environmental conditions including ambient light interference and larger detection ranges.

Project Overview
Core Features
System Architecture
Hardware Requirements
Wiring and Circuit Diagram
Software Stack
Repository Structure
Environment and Setup
Build, Flash, and Monitor
Web Dashboard Capabilities
REST Endpoints
Mode Logic and Threshold Rules
Anomaly Detection and Alerts
Simulation vs Hardware
Known Limitations
Demo Video
Troubleshooting
Future Improvements
License

Project Overview

The system optimizes classroom lighting based on real-time room activity:

IR1 and IR2 detect movement direction across the doorway to maintain an accurate occupancy count using sequence-based directional logic.
PIR detects motion for edge cases where occupancy reads zero but physical presence exists in the room.
Lighting modes switch automatically based on occupancy thresholds, or can be manually overridden via the web dashboard.
Admin controls support full operational commands and live configuration from any browser on the same network.

Core Features

Real-time occupancy counting using directional IR sequence logic
4 lighting states: OFF, LOW, MED, HIGH
Occupancy-aware automatic mode control
Motion-aware LOW mode when occupancy is zero and PIR is active
Manual override controls (OFF / LOW / MED / HIGH)
PIR enable/disable control
System ON/OFF toggle
Occupancy reset and full system reset
Event logging with uptime timestamps
Anomaly detection: motion detected while occupancy is zero
LCD alert for anomaly (shown for 5 seconds, then normal display resumes)
Dashboard modal alert for anomaly with acknowledge action
Admin-configurable occupancy thresholds for LOW, MED, HIGH from dashboard settings

System Architecture

Controller: ESP32 (Arduino framework)
Sensors:
- IR obstacle sensor pair for entry/exit direction detection
- PIR sensor for motion/presence validation
Outputs:
- 16x2 I2C LCD for real-time status display
- 3 LEDs representing LOW / MED / HIGH lighting intensity
Interface:
- Embedded HTTP web server hosted on ESP32
- HTML/CSS/JS dashboard served directly from SPIFFS filesystem

Hardware Requirements

Component	Specification	Quantity
ESP32 DevKit	DOIT DevKit V1	1
IR obstacle sensor	3-pin (OUT/GND/VCC), 3.3V compatible	2
PIR motion sensor	HC-SR501 or compatible, 5V	1
LCD display	16x2 with I2C backpack, address 0x27	1
LED	Any colour, 3mm or 5mm	3
Resistor	220Ω current limiting for LEDs	3
Breadboard	Full size (830 point)	2
Jumper wires	M-F and M-M	As needed
Power supply	5V USB (laptop, wall charger, or power bank)	1

Wiring and Circuit Diagram

Pin Mapping

IR Obstacle Sensors

Sensor Pin	ESP32 Connection	Notes
IR1 OUT	GPIO 4	Entry side sensor signal
IR1 GND	GND rail	Common ground
IR1 VCC	3.3V rail	3.3V power — do NOT connect to 5V
IR2 OUT	GPIO 5	Exit side sensor signal
IR2 GND	GND rail	Common ground
IR2 VCC	3.3V rail	3.3V power — do NOT connect to 5V

GPIO 32 and GPIO 33 were tested but found unreliable on this board revision. GPIO 4 and GPIO 5 are used instead.

PIR Motion Sensor

Sensor Pin	ESP32 Connection	Notes
VCC	VIN (5V)	PIR requires 5V — do NOT use 3.3V
GND	GND rail	Common ground
OUT	GPIO 27	Digital signal output

PIR output signal is 3.3V compatible despite being powered at 5V. Safe to connect directly to ESP32 GPIO.

LEDs

LED	ESP32 Pin	Resistor	Represents
LED 1	GPIO 25	220Ω to GND	LOW mode
LED 2	GPIO 26	220Ω to GND	MED mode
LED 3	GPIO 18	220Ω to GND	HIGH mode

Connect LED anode (long leg) toward ESP32 signal pin. Connect cathode (short leg) through 220Ω resistor to GND.

LCD I2C Display

LCD Pin	ESP32 Connection	Notes
VCC	3.3V rail	3.3V power
GND	GND rail	Common ground
SDA	GPIO 21	I2C data — default ESP32 SDA
SCL	GPIO 22	I2C clock — default ESP32 SCL

If LCD shows blank screen after powering on, adjust the contrast potentiometer on the back of the I2C backpack module using a small screwdriver.

Power Rails Summary

ESP32 3.3V → breadboard 3.3V rails (powers IR sensors and LCD)
ESP32 VIN  → dedicated row     (powers PIR sensor only)
ESP32 GND  → breadboard GND rails (common ground for all components)

Wokwi Simulation

View and run the interactive circuit simulation here:

https://wokwi.com/projects/458998638421835777

Simulation vs Hardware

The Wokwi simulation uses pushbuttons as substitutes for IR obstacle sensors, as Wokwi does not natively support IR obstacle sensor components. The GPIO pin assignments and firmware logic are otherwise identical between simulation and hardware.

Component	Simulation (Wokwi)	Hardware
Entry detection	Pushbutton (GPIO 4)	IR obstacle sensor (GPIO 4)
Exit detection	Pushbutton (GPIO 5)	IR obstacle sensor (GPIO 5)
PIR motion	PIR sensor (GPIO 27)	PIR sensor (GPIO 27)
Display	LCD I2C	LCD I2C
Indicators	LEDs	LEDs

Software Stack

PlatformIO (build system and IDE)
Arduino framework for ESP32
LiquidCrystal_I2C library
ArduinoJson library
SPIFFS filesystem for dashboard hosting
HTML / CSS / JavaScript (vanilla, no frameworks)

Repository Structure

.
├── data/
│   └── dashboard.html          # Web dashboard (served from SPIFFS)
├── src/
│   ├── main.cpp                # Firmware logic, API routes, control loops
│   ├── credentials.h.example   # Wi-Fi credential template
│   └── credentials.h           # Your credentials (never commit this)
├── platformio.ini              # Board, framework, lib dependencies
└── README.md

Environment and Setup

1. Prerequisites

VS Code with PlatformIO extension or
PlatformIO Core CLI installed

2. Clone repository

git clone https://github.com/Ravisankar-S/Occupancy-Based-Energy-Optimization.git
cd Occupancy-Based-Energy-Optimization

3. Configure Wi-Fi credentials

cp src/credentials.h.example src/credentials.h

Edit src/credentials.h:

#define WIFI_SSID     "your_wifi_name_here"
#define WIFI_PASSWORD "your_wifi_password_here"

credentials.h is listed in .gitignore and will never be committed. Only credentials.h.example is tracked.

4. Install dependencies

PlatformIO installs dependencies automatically from platformio.ini on first build:

marcoschwartz/LiquidCrystal_I2C
bblanchon/ArduinoJson

Build, Flash, and Monitor

Run from project root. VS Code PlatformIO users can use the Project Tasks sidebar instead.

Build firmware

pio run

Upload firmware

pio run -t upload

Upload dashboard to SPIFFS

pio run -t uploadfs

Must be done at least once before the dashboard is accessible. Redo only if dashboard.html changes.

Open serial monitor

pio device monitor -b 115200

Upload firmware and open monitor

pio run -t upload && pio device monitor -b 115200

Open dashboard

Check serial output for the assigned IP address, then open in any browser:

http://<ESP32_IP>

Web Dashboard Capabilities

Live Status Cards

Occupancy — real-time people count
Power Mode — current mode with LED strip indicator and threshold summary. Settings icon opens threshold configuration modal
Motion — PIR state (YES / NO / DISABLED)
Control — AUTO / OVERRIDE / OFF state

Manual Controls

Override buttons: OFF / LOW / MED / HIGH
Clear Override
PIR enable/disable toggle
Reset Occupancy
System ON/OFF toggle
Full System Reset

Mode Settings Modal

Opened from the settings icon on the Power Mode card:

Set occupancy threshold for LOW, MED, HIGH modes
Validation enforces LOW < MED < HIGH
Changes apply to ESP32 immediately on save
Mobile-friendly layout

Event Log

Reverse chronological timestamped log of:

ENTRY / EXIT events
PIR triggers
Mode and override changes
System actions
Anomaly alerts

Anomaly Alert Modal

Appears when motion is detected while occupancy is zero. Includes timestamp and acknowledge button. Also dismissible via Escape key or clicking outside the modal.

REST Endpoints

GET

Endpoint	Description
`/`	Dashboard HTML
`/status`	Live system state JSON
`/log`	Recent event log JSON

POST

Endpoint	Description
`/override?mode=0\|1\|2\|3`	Force lighting mode
`/override/clear`	Return to auto mode
`/pir/toggle`	Enable or disable PIR
`/occ/reset`	Reset occupancy to 0
`/system/toggle`	Toggle system ON/OFF
`/reset`	Full system reset
`/settings/mode-thresholds?low=<n>&med=<n>&high=<n>`	Update mode thresholds

Mode Logic and Threshold Rules

Occupancy = 0

PIR State	Mode
Motion detected	LOW (for 5 seconds after last trigger)
No motion	OFF

Occupancy > 0

Thresholds are configurable from the dashboard. Defaults:

Occupancy Range	Mode
1 – 2	LOW
3 – 4	MED
5+	HIGH

Anomaly Detection and Alerts

When PIR detects motion while occupancy is zero:

Event logged with timestamp
LCD displays !! UNTRACKED !! / Presence Alert! for 5 seconds
Dashboard shows anomaly modal with acknowledge option
A 10-second arming delay after boot and reset prevents false alerts during startup

Known Limitations

IR obstacle sensors are susceptible to interference from direct sunlight due to ambient infrared radiation. Sensors should be positioned away from windows and direct sunlight in deployment.
PIR sensor may trigger erratically near windows, AC vents, or other heat sources.
Occupancy thresholds reset to firmware defaults on power cycle. Persistent threshold storage via NVS is a planned improvement.
IR counting assumes single-file entry and exit. Two people passing simultaneously may cause a miscount.
System assumes a single controlled entry point per room.

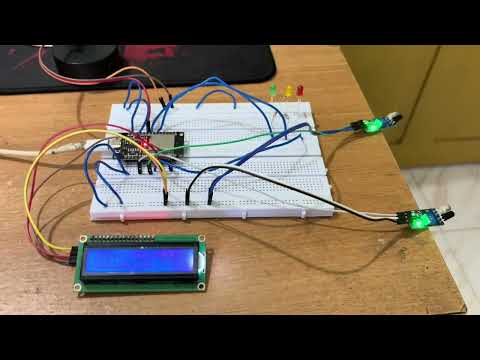

Demo Video

Watch the full system demo here:

https://youtu.be/p-2X_5lIzx8

The demo video was recorded before the admin-configurable occupancy threshold feature was added. All other features shown are present in the current codebase.

Troubleshooting

Problem	Solution
Dashboard not loading	Run `pio run -t uploadfs` to upload SPIFFS filesystem
WiFi not connecting	Verify `src/credentials.h` values are correct
LCD blank on boot	Adjust contrast potentiometer on I2C backpack
LEDs not lighting	Check LED polarity — long leg toward signal pin
IR sensors not triggering	Adjust sensitivity potentiometer on sensor module. Avoid direct sunlight
PIR always HIGH on boot	Normal — PIR has a 30–60 second warm-up period
IP address unknown	Open serial monitor at 115200 baud to read assigned IP
Occupancy phantom triggers	Ensure IR OUT pins use `INPUT_PULLUP` mode in firmware

Future Improvements

Sensor and Hardware

Replace IR obstacle sensors with industrial IR break-beam sensors for reliable detection in ambient light conditions
Upgrade PIR to a wide-angle ceiling-mount sensor rated for larger classroom spaces
Add current sensor (ACS712) on the lighting load to measure actual power consumption and validate energy savings quantitatively
Integrate a real relay module to control actual lighting circuits instead of indicator LEDs

Firmware

Persist mode thresholds across reboots using ESP32 NVS (Non-Volatile Storage) or Preferences library
OTA (Over-The-Air) firmware updates so devices can be updated without physical access
Watchdog timer implementation to auto-recover from firmware hangs
Scheduled daily occupancy reset at midnight to correct any count drift
Multi-entry point support for classrooms with more than one door

Dashboard and Connectivity

Password-protected dashboard with admin authentication
Historical occupancy and mode data graphing over time
CSV or JSON export of event logs for external analysis
MQTT integration to publish sensor data to a central broker
Multi-room support — each classroom as a node reporting to a unified building dashboard
Mobile push notifications for anomaly alerts via a companion app or webhook

Deployment

PCB design to replace breadboard prototype for reliable long-term installation
3D printed enclosure for sensor and controller housing
Power consumption analysis and energy savings report generation
Integration with existing Building Management Systems (BMS)

License

This project is licensed under the terms of the LICENSE file in this repository.

made with ❤ by Ravi
